| 加工定制 | 是 |
|---|---|
| 种类 | 蜂鸣器(片) |
| 驱动方式 | 电磁式 |
| 是否有源 | 有源 |
| 材质 | ABS |
| 规格尺寸 | 12*8.5（mm） |
| 声道数 | 单声道 |
| 品牌 | 美国ECCO |

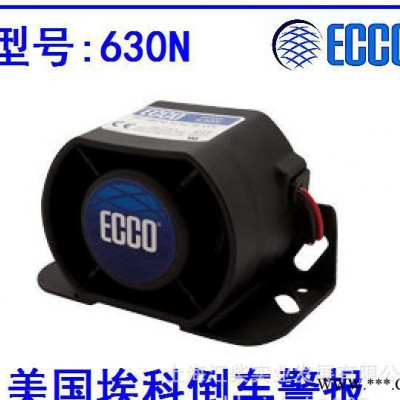

| 型号 | 630N |
***********************************************************************************************************************************************************************************************************************
Compact housing and rugged construction designed for demanding applications, reverse mounted speaker enhances sound and protects the alarm from dust and moisture ingress. Epoxy sealed against dust, moisture and vibration. - See more at: //www.eccolink.com/products/productdetails.aspx?id=12520#sthash.c4mTlG28.dpuf
| Title | Value | |

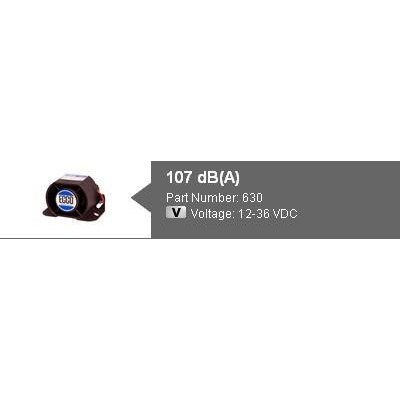

| Voltage | 12-36 VDC | |
| Amps | 0.4 | |
| Volume | 107 | |
| Type | Speaker | - |
| Warranty | ECCOLIFE | |
| Approval | SAE J994 Type B (AMECA), UL, CE, e | |
| Temperature Range | -40F to +185F | - |
- See more at: //www.eccolink.com/products/productdetails.aspx?id=12520&catid=0&tabid=2&menuId=#sthash.AVmmMrQx.dpuf
| File | Description | |
| 600_ECCO_8.5X11.pdf | Data Sheet | Download |
| 600_Series_1500p.jpg | High Resolution Image | Download |

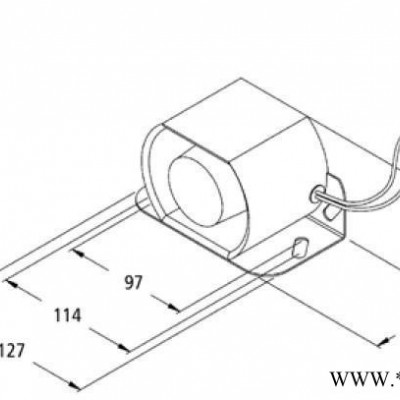

| 97831.pdf | Engineering Drawing | Download |
| 94243.pdf | Installation Instructions | Download |
- See more at: //www.eccolink.com/products/productdetails.aspx?id=12520&catid=0&tabid=3&menuId=#sthash.FUyARicu.dpuf
