| 加工定制 | 否 |
|---|---|
| 材质 | 塑料 |
| 规格 | JACOB带喇叭口尼龙电缆接头 |
| 连接型式 | JACOB带喇叭口尼龙电缆接头 |
| 适用范围 | JACOB带喇叭口尼龙电缆接头 |
| 品牌 | JACOB带喇叭口尼龙电缆接头 |
| 型号 | JACOB带喇叭口尼龙电缆接头 |

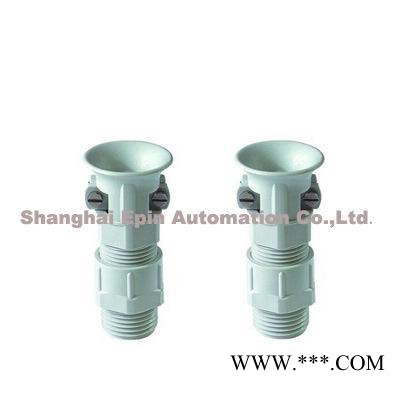

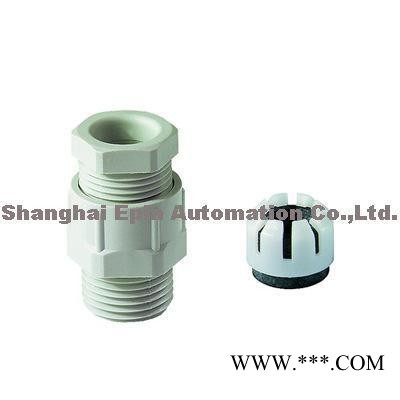

EPIN德国JACB带喇叭口尼龙电缆接头-JACOB cable gland FAVORIT 28.6xxMxxPA
EPIN德国JACB带喇叭口尼龙电缆接头-JACOB cable gland FAVORIT 28.6xxMxxPA
|
| 温度范围 |
| -30°C | |
| +100°C | |
| 防护等级 | |
| IP65 |
RAL 7035
连接螺纹标准长度
A | C | L | SW1 | SW2 | H | Pkg. | Part No. |
| mm | mm | mm | mm | mm | Piece |
|
M12x1,5 | 4 - 6 | 8 | 15 | 13 | 31 | 50 | 28.607M12PA |
M12x1,5 | 6 - 8 | 11 | 19 | 16 | 35 | 50 | 28.609M12PA |
M16x1,5 | 6 - 8 | 11 | 19 | 16 | 35 | 50 | 28.609M16PA |
M20x1,5 | 8 - 10 | 11 | 22 | 18 | 37 | 50 | 28.611M20PA |
M20x1,5 | 10 - 12 | 11 | 24 | 21 | 37 | 50 | 28.613M20PA |
M20x1,5 | 12 - 14 | 11 | 27 | 23 | 40 | 50 | 28.616M20PA |
M25x1,5 | 12 - 14 | 11 | 27 | 23 | 41 | 50 | 28.616M25PA |
M25x1,5 | 14 - 18 | 11 | 32 | 30 | 45 | 25 | 28.621M25PA |
M32x1,5 | 18 - 24 | 11 | 42 | 40 | 49 | 25 | 28.629M32PA |
M40x1,5 | 18 - 24 | 11 | 42 | 40 | 49 | 25 | 28.629M40PA |
A | C | L | SW1 | SW2 | H | Pkg. | Part No. |
| mm | mm | mm | mm | mm | Piece |
|
M12x1,5 | 4 - 6 | 8 | 15 | 13 | 38,5 | 50 | 28.707M12PA |
M12x1,5 | 6 - 8 | 11 | 19 | 17 | 40 | 50 | 28.709M12PA |
M16x1,5 | 6 - 8 | 11 | 19 | 17 | 41 | 50 | 28.709M16PA |
M20x1,5 | 8 - 10 | 11 | 22 | 19 | 46,5 | 50 | 28.711M20PA |
M20x1,5 | 10 - 12 | 11 | 24 | 22 | 46,5 | 50 | 28.713M20PA |
M20x1,5 | 12 - 14 | 11 | 27 | 24 | 50,5 | 50 | 28.716M20PA |
M25x1,5 | 12 - 14 | 11 | 27 | 24 | 52,5 | 50 | 28.716M25PA |
M25x1,5 | 14 - 18 | 11 | 32 | 30 | 54 | 25 | 28.721M25PA |
M32x1,5 | 18 - 24 | 11 | 42 | 41 | 61,5 | 25 | 28.729M32PA |
M40x1,5 | 18 - 24 | 11 | 42 | 41 | 60 | 25 | 28.729M40PA |
A | C | L | SW1 | SW2 | H | Pkg. | Part No. |
| mm | mm | mm | mm | mm | Piece |
|
Pg 7 | 4 - 6 | 8 | 15 | 13 | 36 | 50 | 28.707 PA |
Pg 9 | 6 - 8 | 8 | 19 | 17 | 38 | 50 | 28.709 PA |
Pg 11 | 8 - 10 | 8 | 22 | 19 | 43 | 50 | 28.711 PA |
Pg 13,5 | 10 - 12 | 9 | 24 | 22 | 46,5 | 50 | 28.713 PA |
Pg 16 | 12 - 14 | 10 | 27 | 24 | 51 | 50 | 28.716 PA |
Pg 21 | 14 - 18 | 11 | 32 | 30 | 54,5 | 25 | 28.721 PA |
Pg 29 | 18 - 24 | 11 | 42 | 41 | 60 | 25 | 28.729 PA |
