| 测量范围 | 见资料 |
|---|---|
| 测量精度 | 见描述 |

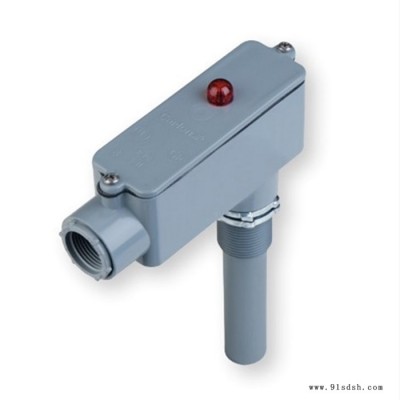

| 名称 | 物位开关 |
| 品牌 | Dwyer德威尔 |
| 型号 | CLS1 |
| 加工定制 | 是 |
Service:Solids, liquids, or slurries.Wetted Material:CPVC.Temperature Limits:Process: -40 to 240°F (-40 to 116°C); Ambient: -40 to 185°F (-40 to 85°C).Enclosure Rating:NEMA 4X (IP56), PVC, dust tight, water resistant.Switch Type:SPDT.Electrical Rating:5 A @ 250 VAC.Power Requirements:120 VAC, 1.5 VA.Conduit Connection:3/4" female NPT.Process Connection:1" male NPS.Mounting Orientation:Vertical or horizontal.Sensitivity:Adjustable to <1 pF.Fail-Safe:Switch selectable, high/low.Time Delay:Adjustable 1 to 30 s.Weight:2.0 lb (0.91 kg).
