| 加工定制 | 是 |
|---|---|
| 适用范围 | GN 6335.1 GN 6335.2 Star knobs |
| 样品或现货 | 现货 |
| 是否标准件 | 标准件 |
| 标准类型 | 德标 |
| 标准编号 | 标准件GN 6335.1 GN 6335.2 Star knobs |
| 品牌 | GANTER |
| 型号 | GN 6335.1 GN 6335.2 Star knobs |

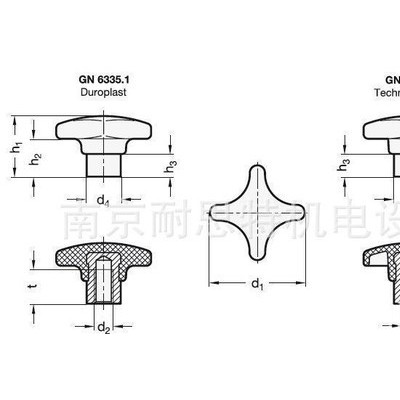

1d2
Thread
GN 6335.1
Type E
GN 6335.2
Type E
d3
Bore H7
GN 6335.1 / GN 6335.2
Type C
d4h1h2≈ h3t
min.
32 M 6 M 6 - B 6 - 12 20 10 9 12
40 M 8 M 6 M 8 B 6 B 8 14 25 13 10 14
50 M 10 M 8 M 10 B 8 B 10 18 32 20 12 18
63 M 12 M 10 M 12 B 10 B 12 20 40 25 14 22
80 M 16 M 12 M 16 B 16 - 25 50 30 17 30
Star knobs GN 6335.1 with all steel bush have important advantages:
The face of the bush is exactly square to the bore and is in steel to prevent
edge breakages. Cross-dowels can be used successfully.
see also...
• Star knobs with threaded bolt GN 6335.4 → Page 296
Information
GN 6335.1 GN 6335.2Star knobs
Duroplast Technopolymerwith protruding steel bush
1d1
2d2(d3)
3Type
Star knob Duroplast
1 2 3
GN6335.1 -63-M12-E
1d1
2d3(d2)
3Type
