| 芯数 | 4 |
|---|---|
| 护套材质 | PVC |
| 电线最大外径 | ？？ 5（mm） |
| 绝缘厚度 | ？？ 2（mm） |
| 标称截面 | 0.25（mm） |
| 用途 | 工业仪器 |
| 线芯材质 | 镀银铜线 |
| 产品认证 | CCC |
| 电压等级 | 中、低压电力电缆（35千伏及以下） |
| 绝缘材料 | 塑料绝缘电力电缆 |
| 净重 | / |
| 额定电压 | 220V |
| 防护等级 | IP67 |
| 品牌 | 其他 |
| 型号 | DOL-0804-W02M |

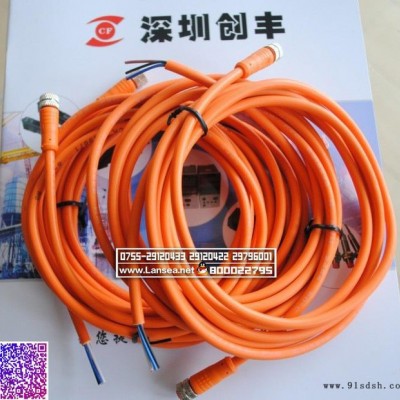

橙色插头连接器电缆DOL-0804-W02M
| Technical data | |||
| Accessory group: | Plug connectors and cables | ||
| Accessory family: | Connecting cables with female connector | ||
| Connection type head A: | Female connector, M8, 4-pin, angled | ||
| Connection type head B: | Cable | ||
| Connection type: | Open conductor heads | ||
| Locking nut material: | CuZn, nickel-plated brass | ||
| Cable diameter: | Ø 5 mm | ||
| Conductor cross-section: | 0.25 mm² | ||
| Shielding: | Unshielded | ||
| Bending radius: | > 10 x cable diameter flexible use, > 5 x cable diameter (stationary position) | ||
| Biegezyklen: | ≥ 1,000,000 | ||
| Tightening torque: | 0.3 Nm | ||
| Display LED: | - | ||
| Reference voltage: | 30 V | ||
| Current loading: | 4 A | ||
| Special feature: | Drag chain use | ||
| Ambient operating temperature: | +5 °C ... +80 °C, cable, flexible use -25 °C ... +80 °C, male connector -40 °C ... +80 °C, cable, stationary position | ||
| Enclosure rating: | IP 67 IP 69K | ||
| Connector material: | PVC | ||
| Connector color: | Orange | ||
| Cable: | 2 m, 4-wire | ||
| Jacket material: | PVC | ||
| Jacket color: | Orange | ||
